Wireless Game Controller for Nintendo Switch

Wireless Game Controller for Nintendo Switch

Product Information:
This controller is compatible with the the Nintendo Switch console.
Firmware has been updated on the controller so it will work with Nintendo's latest 12.x firmware (and all earlier versions) where other controllers will show and error.

It can be connected by a code match system
Wireless connection via Bluetooth

Instructions for connection to the Switch:

First time connection:

Turn on Switch console, wait until the main interface loads, click on "Controllers->Change Grip/order" to enter code pair mode interface.

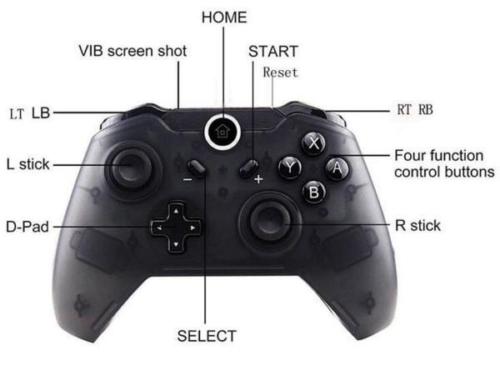

On the controller, press "Y+HOME"combination button for 3 seconds to power on, the four LEDs under the HOME buttons will start blinking quickly when in code pairing mode, one of the four LEDs will be solid bright in 5s, it means the controller is paired with the console successfully.
Then press on the button "A" to start using the controller.

Second and subsequent times:
Just long press on the HOME button for 2s to power on, the controller will be connected automatically.
Then press button "A" to start using the controller.

If the controller is in sleeping mode, short press on the HOME button to wake it up.

More information:
Operating Voltage: DC 3.7v-4.2v
Operating Current: 20-30mA
Static Current: 30-100uA
Vibrating Current: 80-130mA
USB input voltage/current: DC 5v/500mA
Available distance: ≤ 8M
Battery Capacity: 380mAh
Continuous operating time: Around 5h ( fully charged)
Standby Time: Around 25 days
Net weight: 202g
Dimension: 150mm*103mm*60mm
