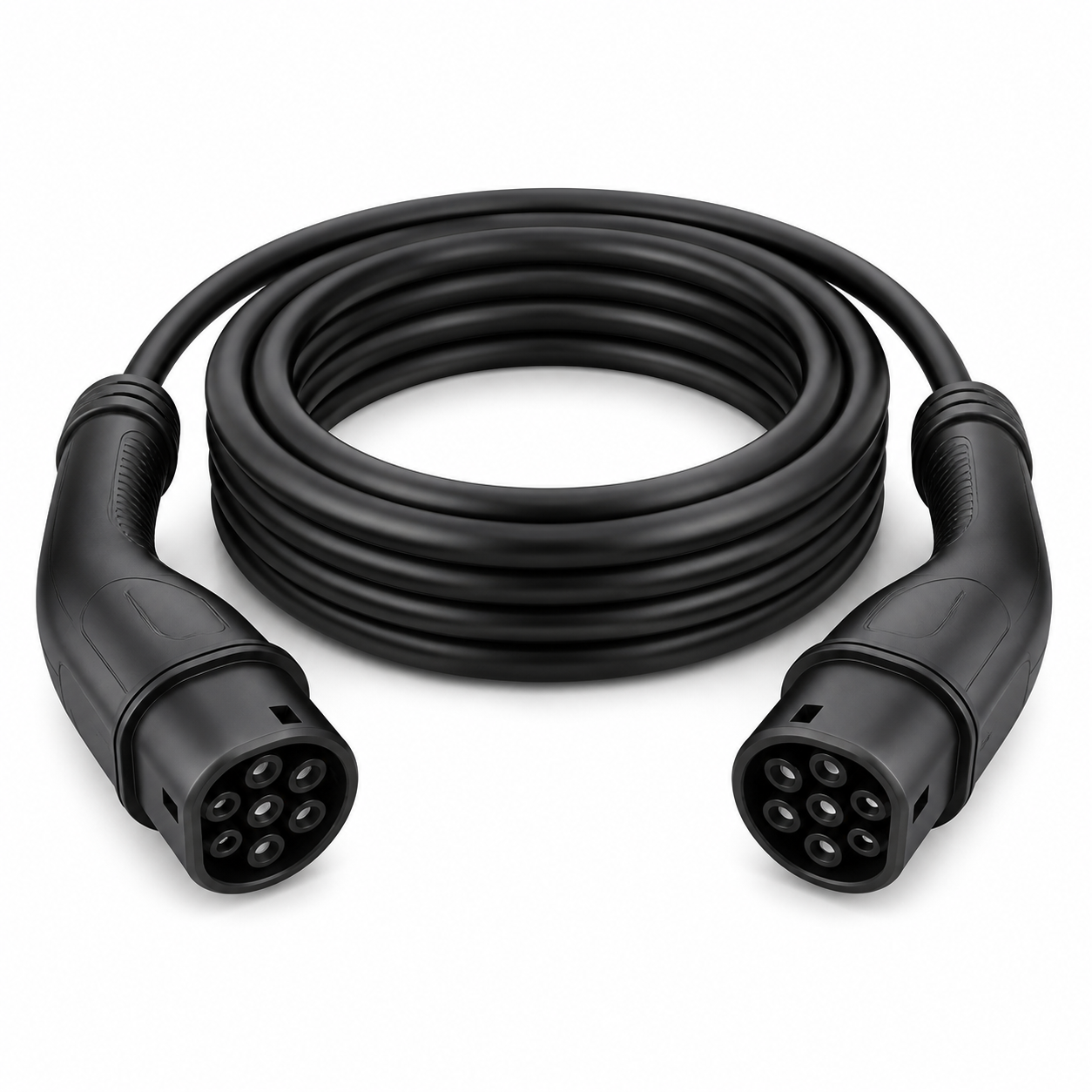

EV Power Type 2 to Type 2 Charging Cable 32A 22kW 3-Phase BYD Atto 3 Tesla MG4

Photo is for reference only

Is my EV compatible?
Type 2 (also known as Mennekes IEC 62196-2 design) is the new plug standard across Australia and our cable is universally compatible with the Type 2 port in all modern electric vehicles, including Tesla, Audi e-tron, BMW i, Mercedes-Benz EQ, MG, Hyundai, Kia, Nissan, Mazda, Volvo Recharge, and many more, and can also be used for vehicles that charge at lower currents due to a smaller on-board charger. Instead of purchasing a lower rated and only marginally lighter 16A cable, we recommend choosing a heavy duty 32A 22kW 3-Phase cable that will handle all possible charging scenarios as a primary or back-up cable, be it for your current EV, future EV, or lending the cable to a third party without any concerns about exceeding the capacity of the cable. Simply message us if you are unsure whether your vehicle is compatible.

Product description
Protection rank: IP54
Length: 5 metre
Fire retardant level: UL94V-0
Rated current: 32A
Rated voltage: 480V
Rated frequency: 50/60Hz
Insulation resistance: ＞100M ohm(DC 500V)
Terminal temperature rise: ＜50K
Withstand voltage: 2000V
Contact resistance: ≤0.05MΩ
Coupled insertion force: ＞45N＜80N
Operating temperature: -35℃ to 50℃

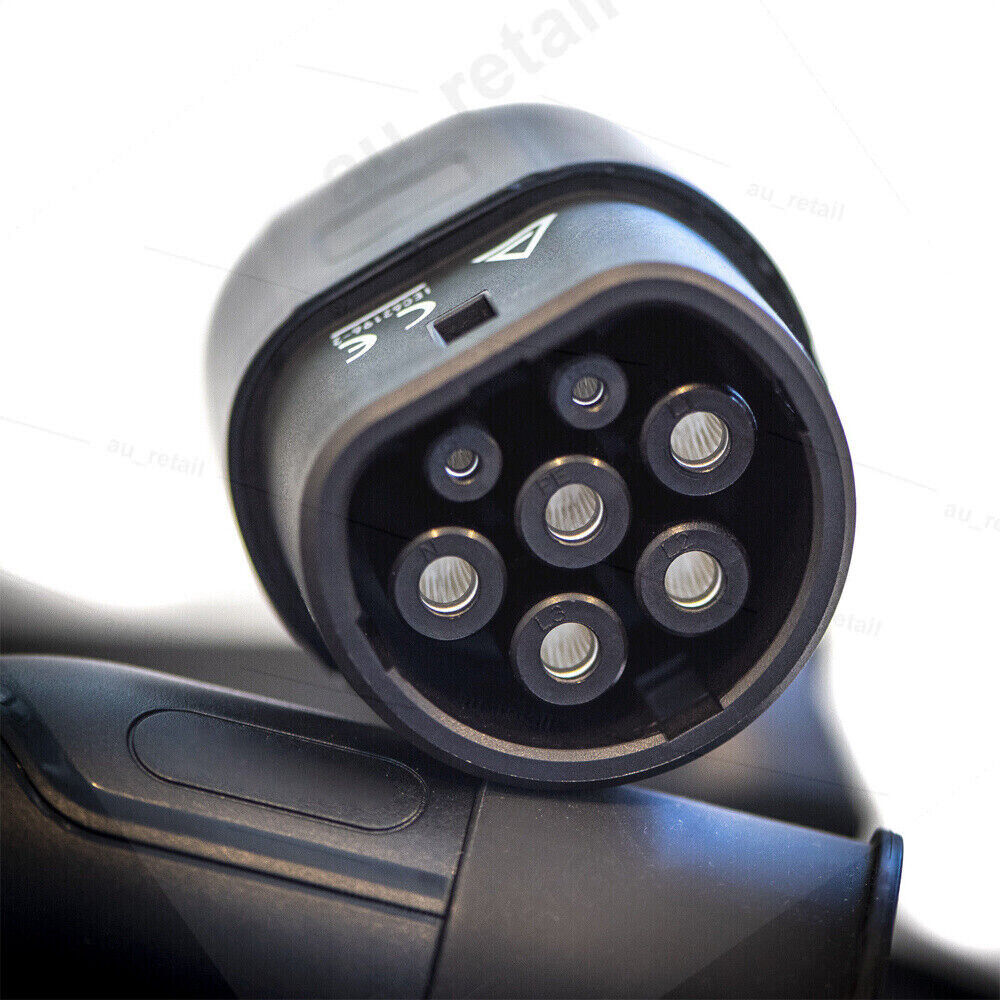

Meet the standard: IEC62196 Type2

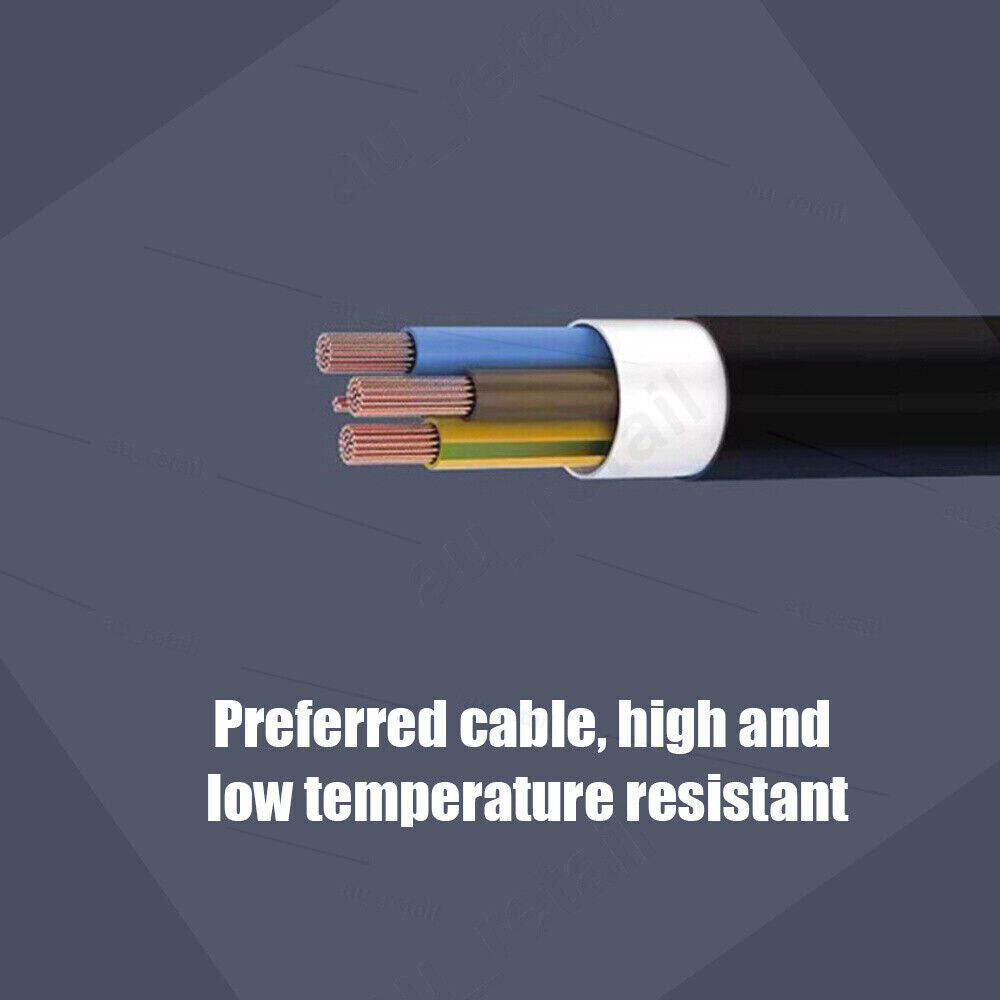

Charging cable: TPU (CE/TUV certified)
Certificate: TUV-Mark,CE(TUV),RoHS,UKCA,Reach,CB
Mechanical life: No-load plug in/pull out＞1000 times
Impact resistance: 1m drop or 2 Ton vehicle run over pressure
Product features: Integrated external mold,excellent waterproof and dustproof performance. Flame retardant,Environmental protection,Pressure resistance,Abrasion resistance,Impact resistance
