48V 13Ah SilverFish Lithium Battery Pack 500W 750W E-bike Electric Bicycle Ion

Brand New,Premium Quality
NZ stock and Shipped from Auckland
Free shipping within New Zealand
Warranty: 6 month
Photo is for reference only
Quantity:1

Please note:
1. It has dc connection.

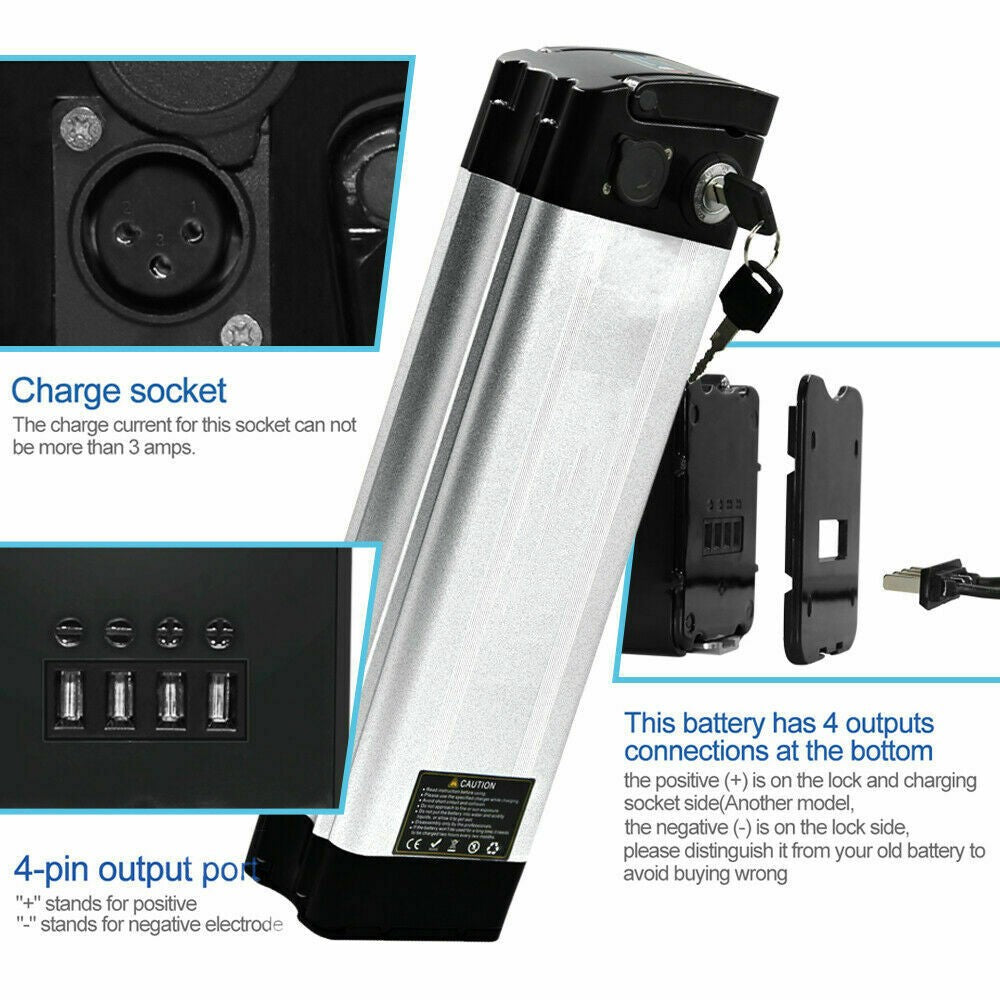

2. The discharging negative (-) is on the key and charging socket side, please make sure the polarity is not reversed from your old battery before purchase.

3. The size is 39cm*11cm*7.5cm(Length x width x hight), please make sure this size can be installed to your bike.
4. If you need to discharge cable connect to bike controller power cable, please mind the the red wire is positive +, the black wire is negative -

Package included:

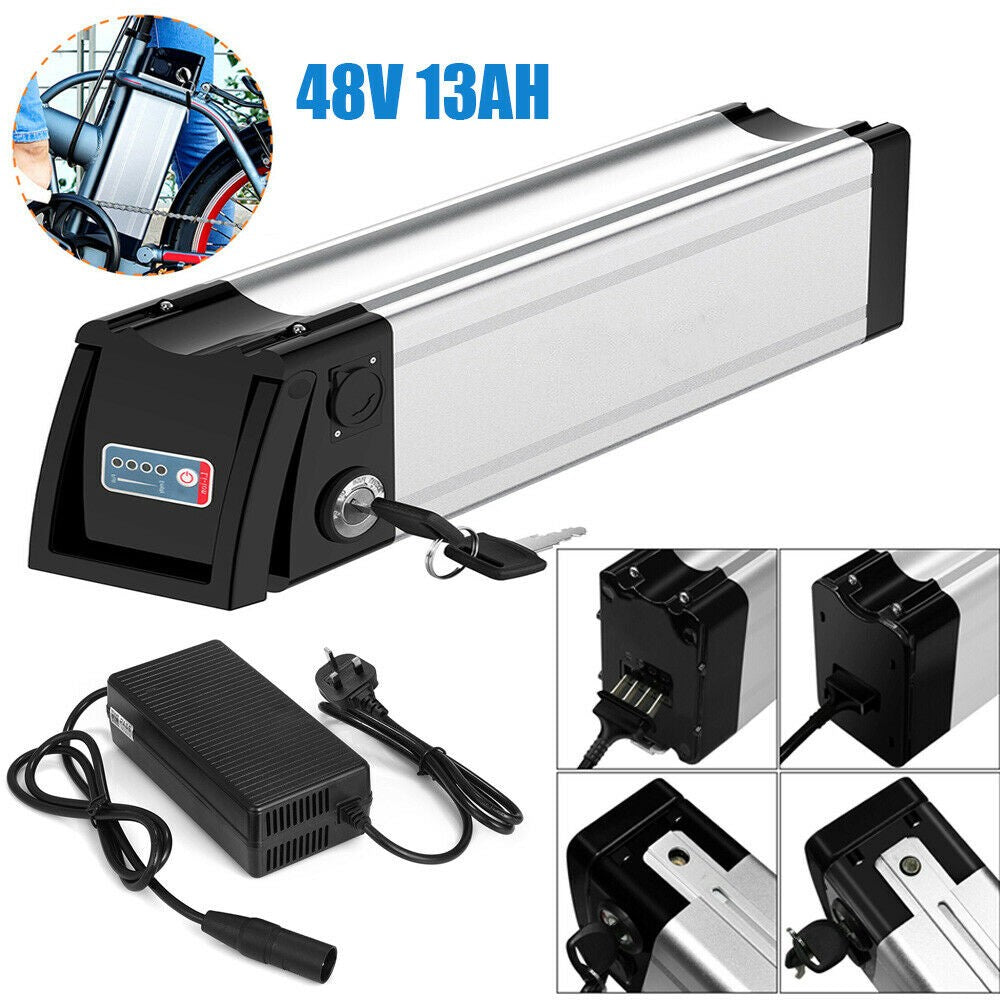

1 x Lithium Battery
1 x Charger
1 x User Manual
1 x Battery Fixed Plate
1 x Warranty Card
2 x Keys

Specification:
Battery Type:Fish Lithium-ion
Rated Voltage / capacity: 48V / 13Ah
Battery N.W/G.W: 3.26KG/3.66KG
Battery Size：（mm):L390*W110*H75 （inch):L154*W43.5*H29.5
Case Material： ABS+Aluminium alloy
Battery Color:Sliver
Batteries combinations:13-S,5-P
Impedance:≤150mΩ
Component:Li(NiCoMn)O2
Cell quality:18650-2500mAh
Recommend to use: 350W-750W

Discharge:
Standard current: 20A
Cut-off voltage: 30V
Cycle life:800 times
Method: Bottom discharge

Fuse:
Installation position:Inside on the PCB
Diameter(mm):5
Length(mm):30
Current:30A


Certification:
CE,RoHS,MSDS


Working temperature:
Charging:0°C~45°C
Discharging:-20°C~60°C
Storage:0°C~30°C


Safety:
-PCB board Protection:Over charge,over discharge,over load and short circuit.
-BMS board Protection:BMS is used to supervise battery by measure its voltage, temperature, current and SOC (State Of Charge), give out alarm under wrong circumstance, cut off electric power link in severe situation in order to protect battery and make its life longer. BMS can balance energy among batteries to make them more identical and expand its discharge cycle.
