24V 10Ah Lithium E-Bike Battery Power 20A BMS For 250W 350W Electric Bicycles

Brand New,Premium Quality
NZ stock and Shipped from Auckland
Free shipping within New Zealand
Warranty: 6 month
Photo is for reference only
Quantity:1

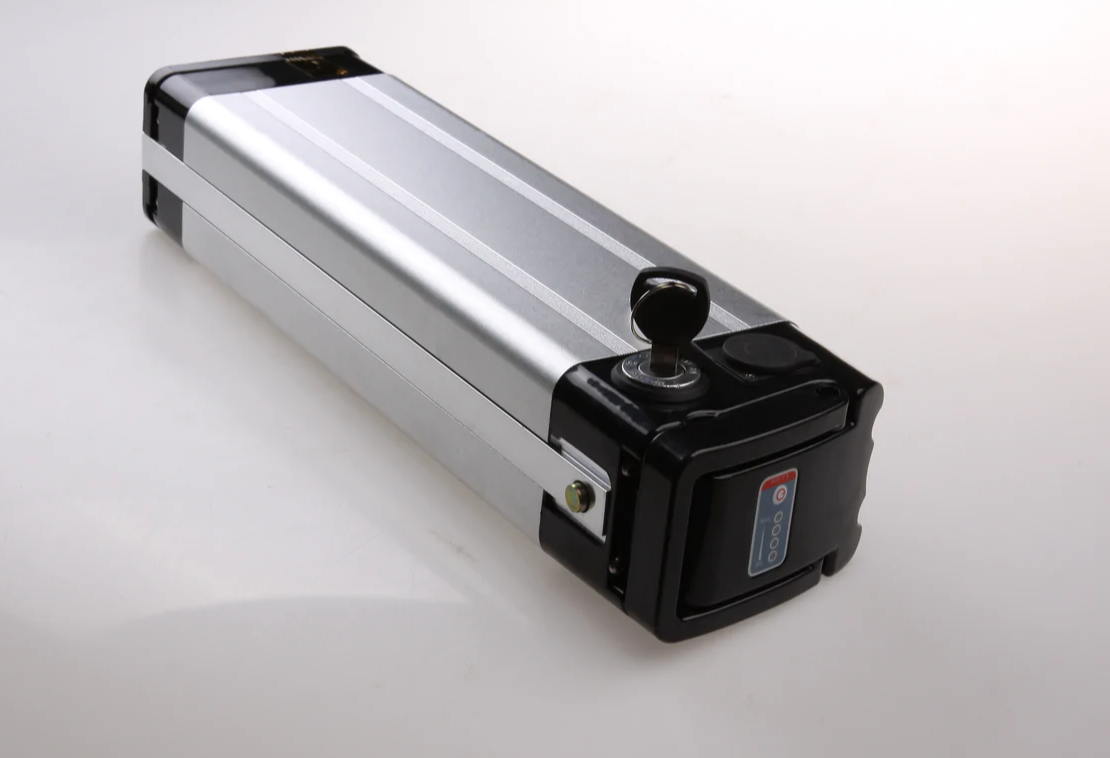

24V 10Ah Lithium E-Bike Battery

Please note:

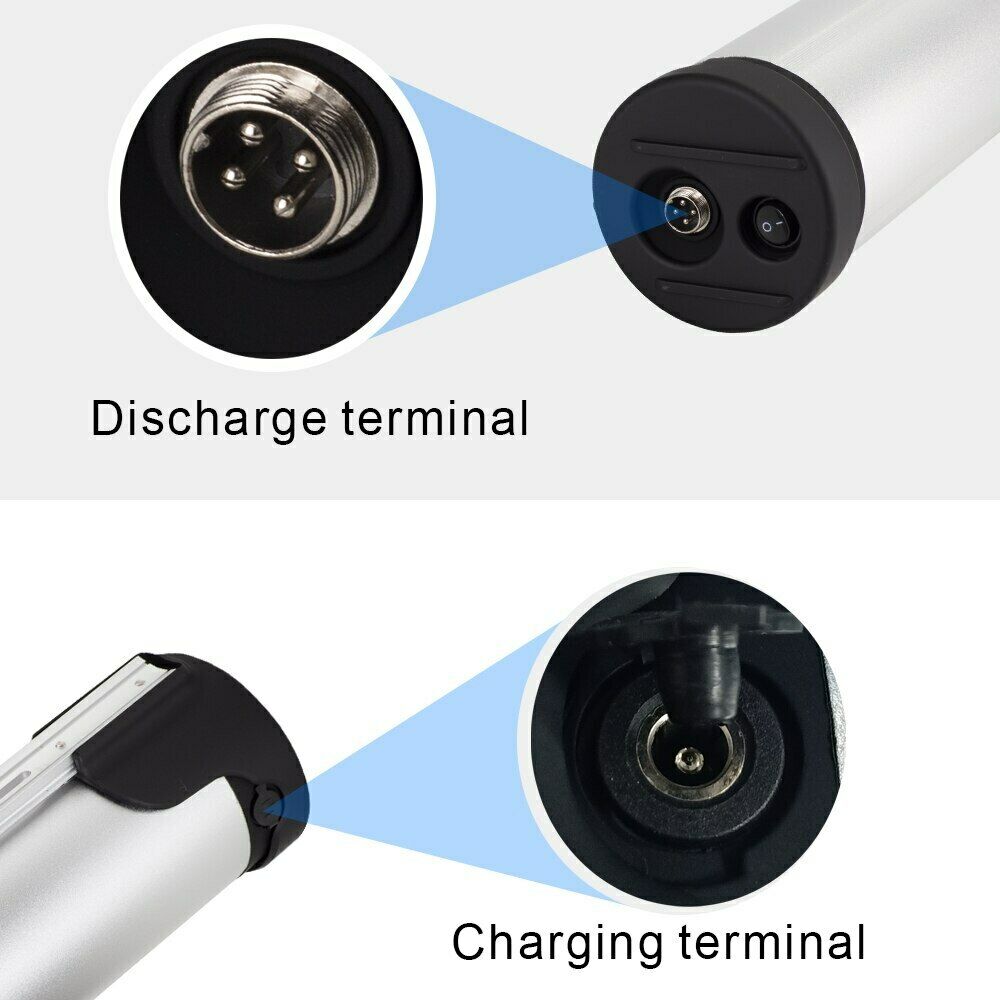

The discharging positive (+) is on the key and charging socket side, please make sure the polarity is not reversed from your old battery before purchase.


Specification of Battery:
Battery Type:Fish Lithium-ion
Rated Voltage / capacity:24V/10Ah
Battery N.W/G.W:2.63KG/3.03KG
Battery Size（mm):L390*W110*H75
Case Material:ABS+Aluminium alloy
Battery Color:Sliver
Batteries combinations:7-S,4-P
Component:Li(NiCoMn)O2
Cell quality:2500mAh
Impedance:≤130mΩ
Recommend to use:250W

Discharging:
Standard current:10A-13A
Max current:28A-30A
Cut-off voltage:21V
cycle life:800 times
method:Bottom discharge

Charging:
Method: CC/CV
Standard Charging Time :0.2C5A×5hrs
Quick Charging Time :0.5C5A×2hrs
Max current: 2A-5A
Max voltage: 29.4V

Fuse:
Installation position:Inside on the PCB
Diameter(mm):5
Length(mm):30
Current:30A

Certification:
CE,RoHS,MSDS

Working temperature:
Charging:0°C~45°C
Discharging:-20°C~60°C
Storage:0°C~30°C

Specification Of Charger:
Charge Cutoff Voltage (V):29.4V
Charge Mode:CC-CV
Standard Charge Current (A):2A
Max Charge Current (A):5A
Gross Weight(with all parts and package):0.4 kgs

Fitment:Fit for 24V E-bike Battery


Package included:
1 X Silver Fish 24V 10Ah Li-ion Batttery
1 X Charger
1 X Instruction Manual

Safety:
PCB board Protection:Over charge,over discharge,over load and short circuit.

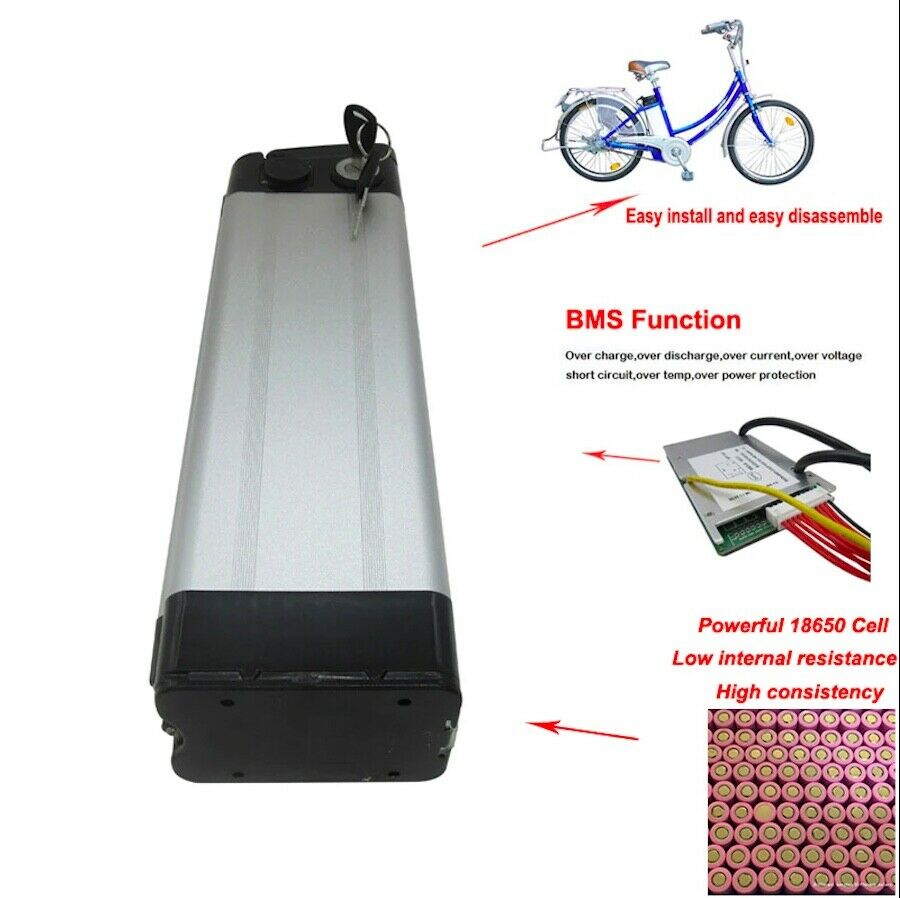

(15A)BMS board Protection:BMS is used to supervise battery by measure its voltage, temperature, current and SOC (State Of Charge), give out alarm under wrong circumstance, cut off electric power link in severe situation in order to protect battery and make its life longer. BMS can balance energy among batteries to make them more identical and expand its discharge cycle.

Avoid charging under the sun exposure.
Please fullfill the electricity first before using.
