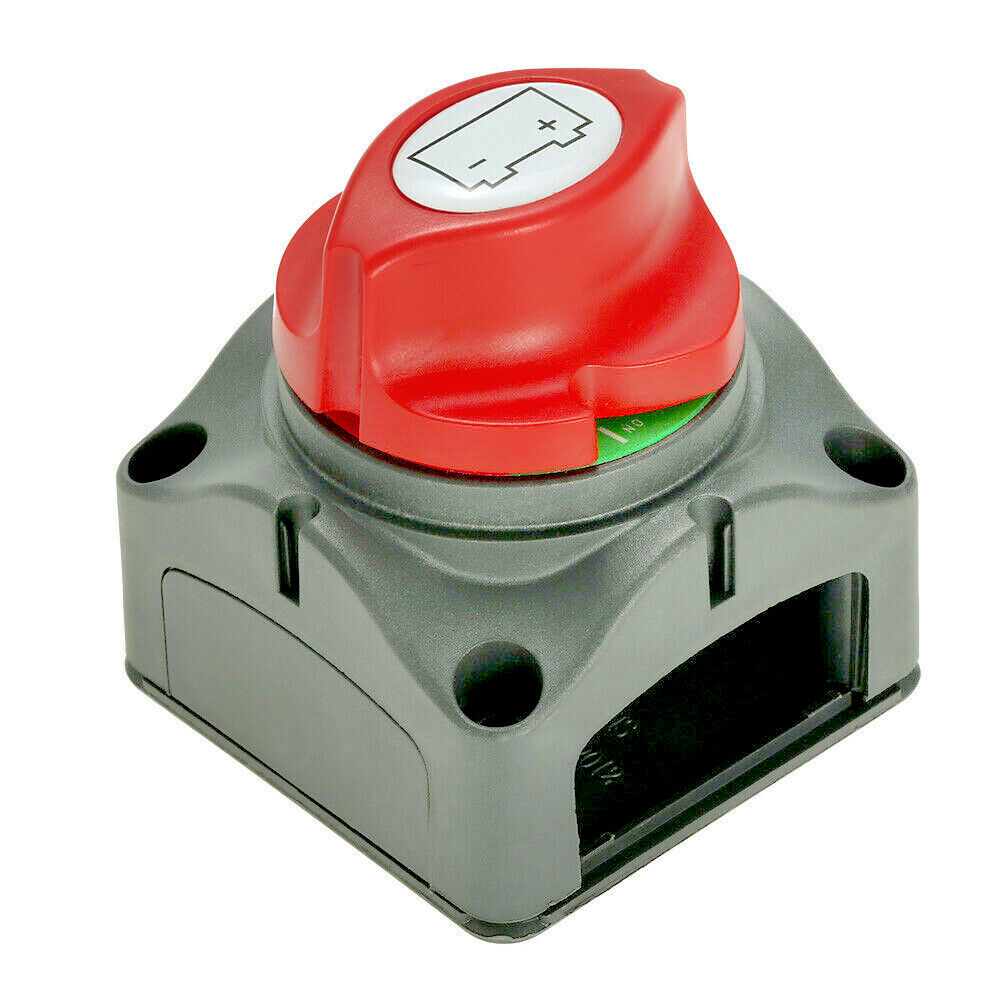

12V/24V/48V Battery Master Disconnect Switch Boat Marine Caravan Isolator On/Off

Features:
This item is widely used in all kinds of RV, boats, winch power cable, both apply to the inside or the outside electrical equipment's switch, such as flashing light, chassis light, fog light, dome light and so on.
Made of premium quality ABS, durable, corrosion resistant, can resist the harsh marine conditions.
Easy to install, it can stand alone, or locked together with other switches to isolate and secure the electrical system with 12V up to 48V systems.

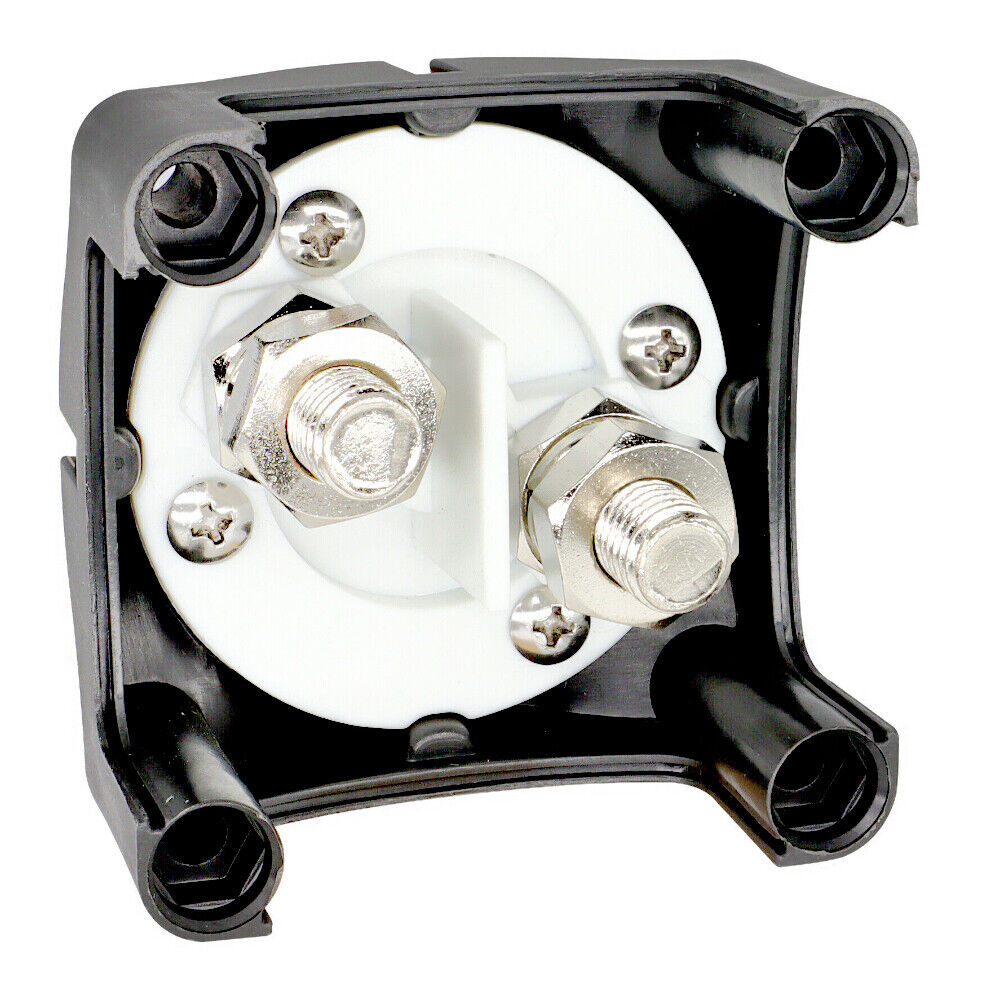

The rear cover insulating the rear terminals against any short circuits to meet ABYC requirements.
Switch to an counterclockwise 45 degree position to remove the control konb, which has an interchangeable labeling system allowing a full range of applications.
Three removable side plates provide access of up to 1/0 cables. 2 mounting screw holes(10mm diameter).

Note: Engine must be stopped before selecting OFF, this is to protect the alternator. Eliminate any power draw from the battery when are not in use.

Specification:
Voltage : 12V, 24V, 48V DC
Electric Current: 100A-300A
Current Rating: 275A(12V), 150A(24V), 75A(48V)
Mounting Screw Diameter: 10mm

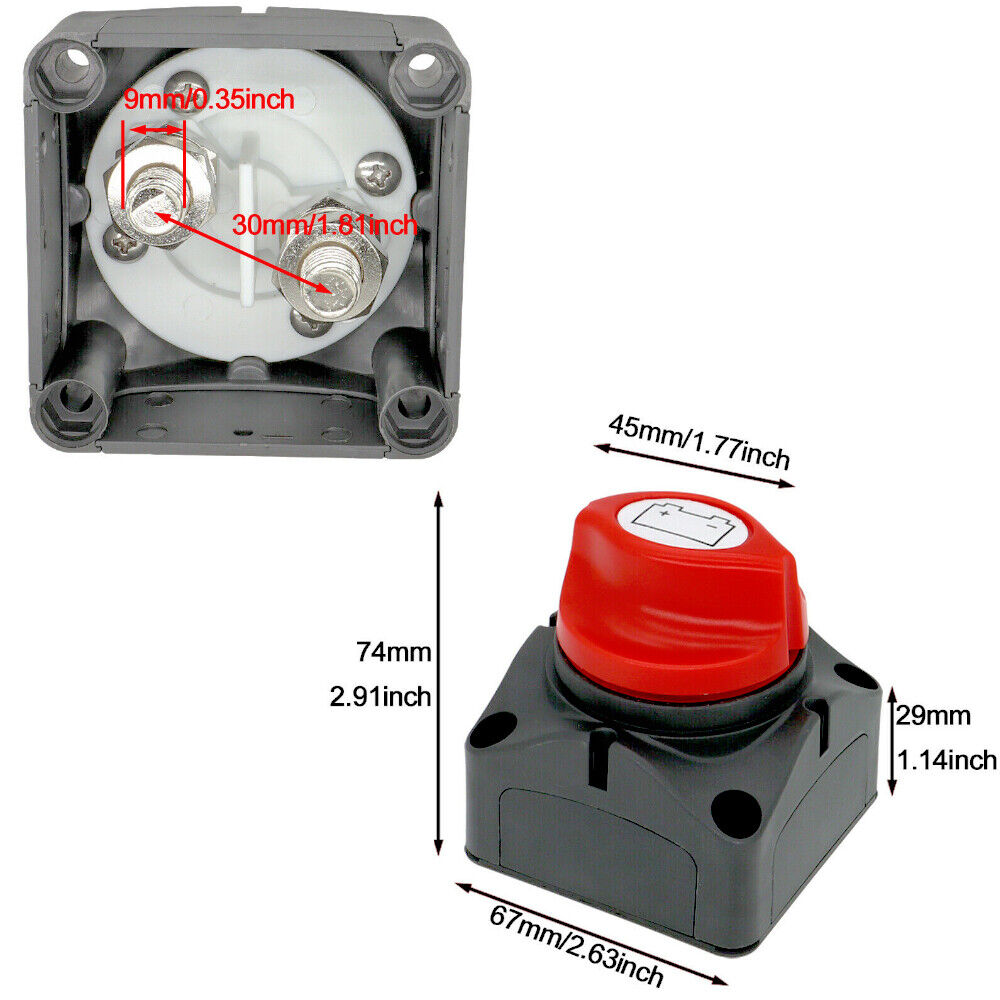

Dimensions: 68 x 68 x 65 (mm)

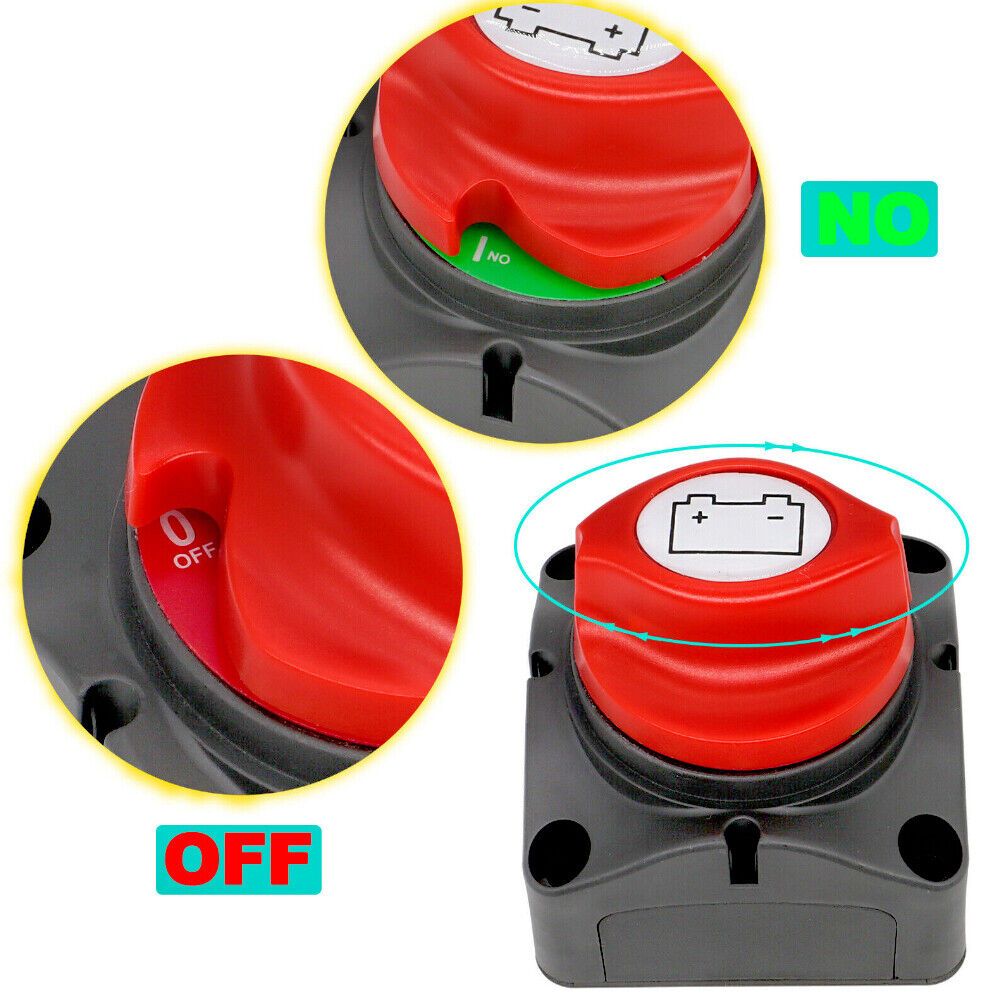

Operation: On/Off

Package List:
1 x Switch with cover
